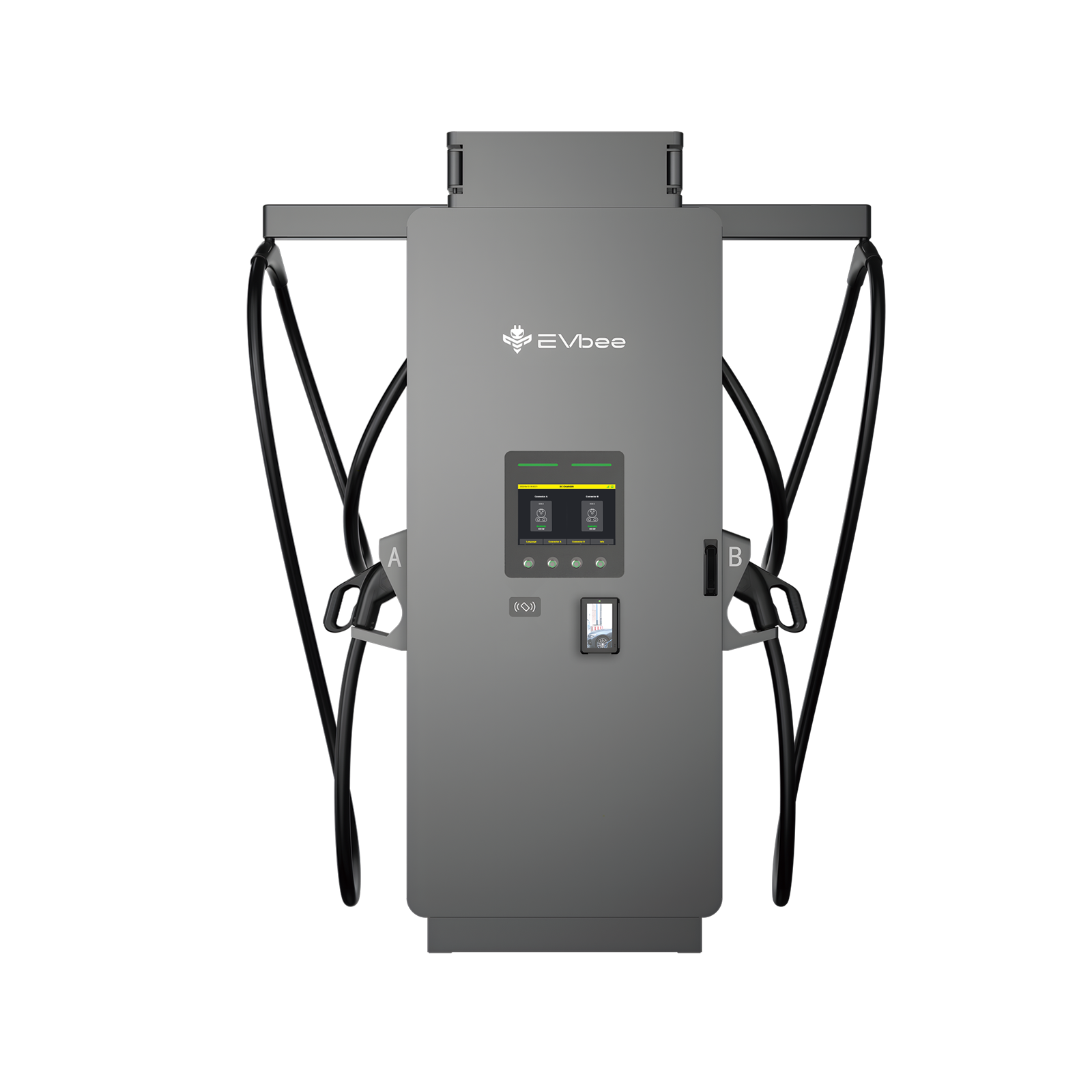

EVbee DC 400
Ultra-fast Charging Station
EVbee DC 400
Ultra-fast Charging Station
Ultra-fast Charging

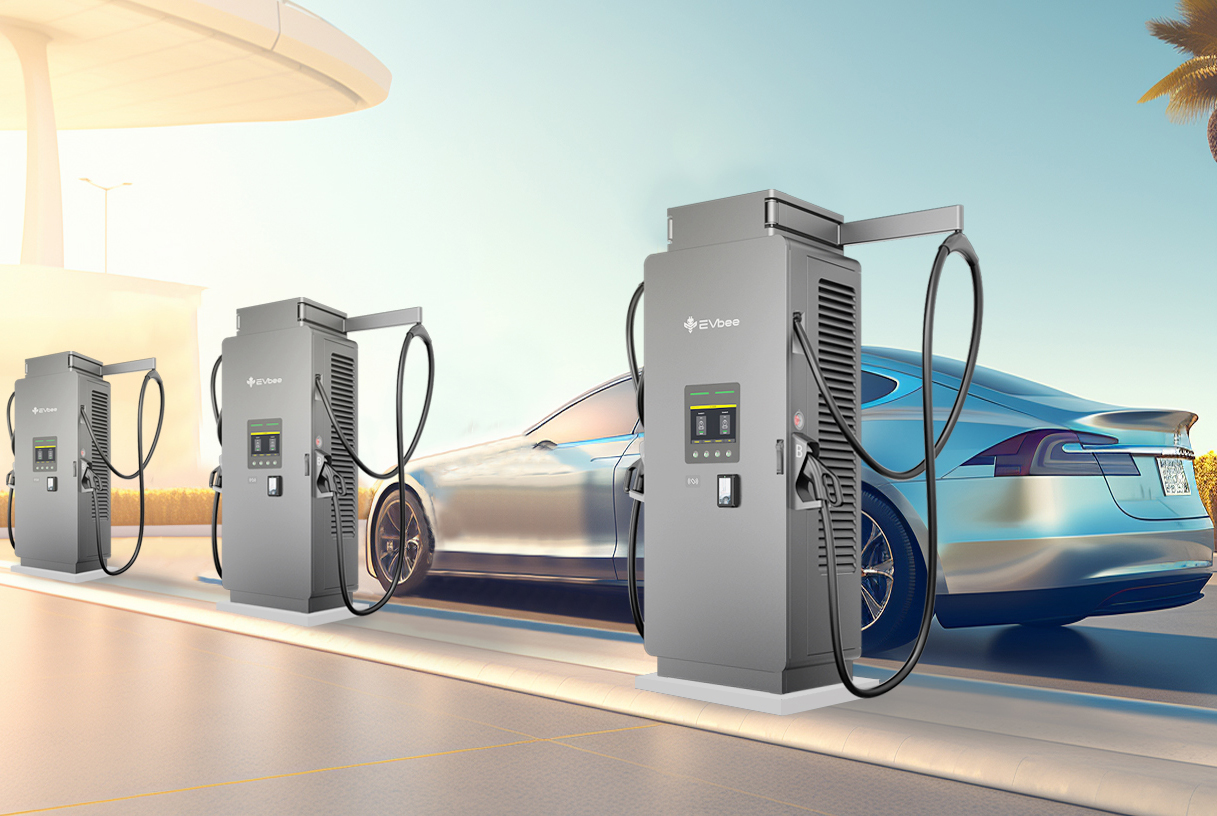

400kW Ultra-fast Charging Station: Designed for highways, cities, HPC stations,and transport hubs. Supports trucks, buses, boats, and mining vehicles with 10-20 minute refills.
Ultra-fast Charging
400kW Ultra-fast Charging Station: Designed for highways, cities, HPC stations, and transport hubs. Supports trucks, buses, boats, and mining vehicles with 10-20 minute refills.
Smart & Safe
Interlock design and real-time safety monitoring ensure stable, secure operation.Features cable anti-theft protection and an alarm system for added safety.
Smart & Safe
Interlock design and real-time safety monitoring ensure stable, secure operation. Features cable anti-theft protection and an alarm system for added safety.
Power Allocation
Flexible 80-120-120-80kW allocation for parallel DC charging. First-come, first-served with a minimum 80kW guarantee; power increases as resources free up.
Power Allocation
Flexible 80-120-120-80kW allocation for parallel DC charging. First-come, first-served with a minimum 80kW guarantee; power increases as resources free up.
Reliable Operation

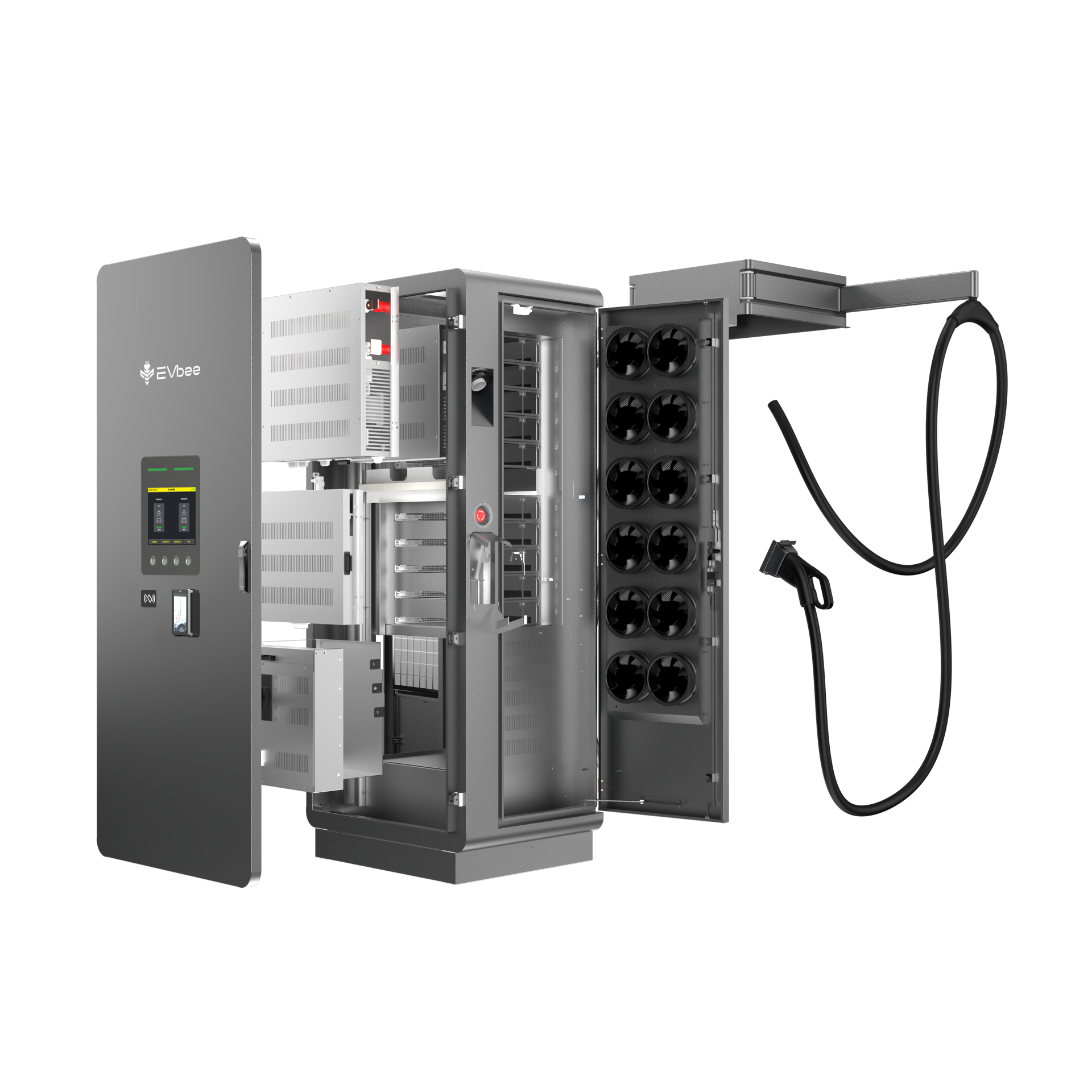

Modular design and remote management simplify maintenance, reduce costs,and maximize uptime.
Reliable Operation
Modular design and remote management simplify maintenance, reduce costs,and maximize uptime.
Benefits
Benefits
Efficient
Optimized charging uptime enhances revenue potential.
Intelligent
Smart, dynamic charging ensures efficient allocation of
charging power
Easy Maintenance
The modular design enables seamless after-sales
operations
Key Features
Key Features
400kw Dual Output
400kW ultra-fast charging, max 500A output without liquid cooling. Features flexible power allocation (80-120-120-80kW) for independent dual EV charging.
Smart Intergration
Offers flexible payment options with NFC, POS, and RFID functionality, seamlessly integrating into your ecosystem.
Dual Uplinks
Connects to both OCPP backend and EVbee Garden maintenance backend, enabling remote diagnosis andensuring high uptime operation.
Easy Installation
Clean, modular design with optimized wiring and connection sensures simple installation and maintenance.
Cable Management
Optional top-mounted arm-style CMS keeps cables off the ground.
Product Specs
Product Specs
Dimensions (mm)
H1900 x W800 x D650
Weight (kg)
500kg
AC Input Voltage
400Vac+/-10%(3P+N+PE,50-60Hz
Output Voltage Range
150Vdc-1000Vdc
Total DC Output Power (max.)
400/360/320/280/240kW
Protection Rating
IP54
User Interface
10.1" display, LCD
Payment Method
POS, NFC & QR Code
Remote Management
Remote access, diagnostics and software updates
